Below statement written by Tommy Horning of Horning Hybrid
It has long been our wish to have a smaller loudspeaker than the Aristoteles ellipse in the horning loudspeaker range. Several prototypes were made and turned down. It’s very, very hard to find a smaller speaker which can play all kinds of music with good results.
Recent feedback from a show attendee
"Willow Tree Audio were showing the speakers i wanted to take home. These Horning Hybrid Speakers had it all for me ! A lovely relaxed sound with a warm presentation and a low end performance that had me up looking at the speakers to see "how this could be possible" 10/10 for me hope to see these in my room one day."

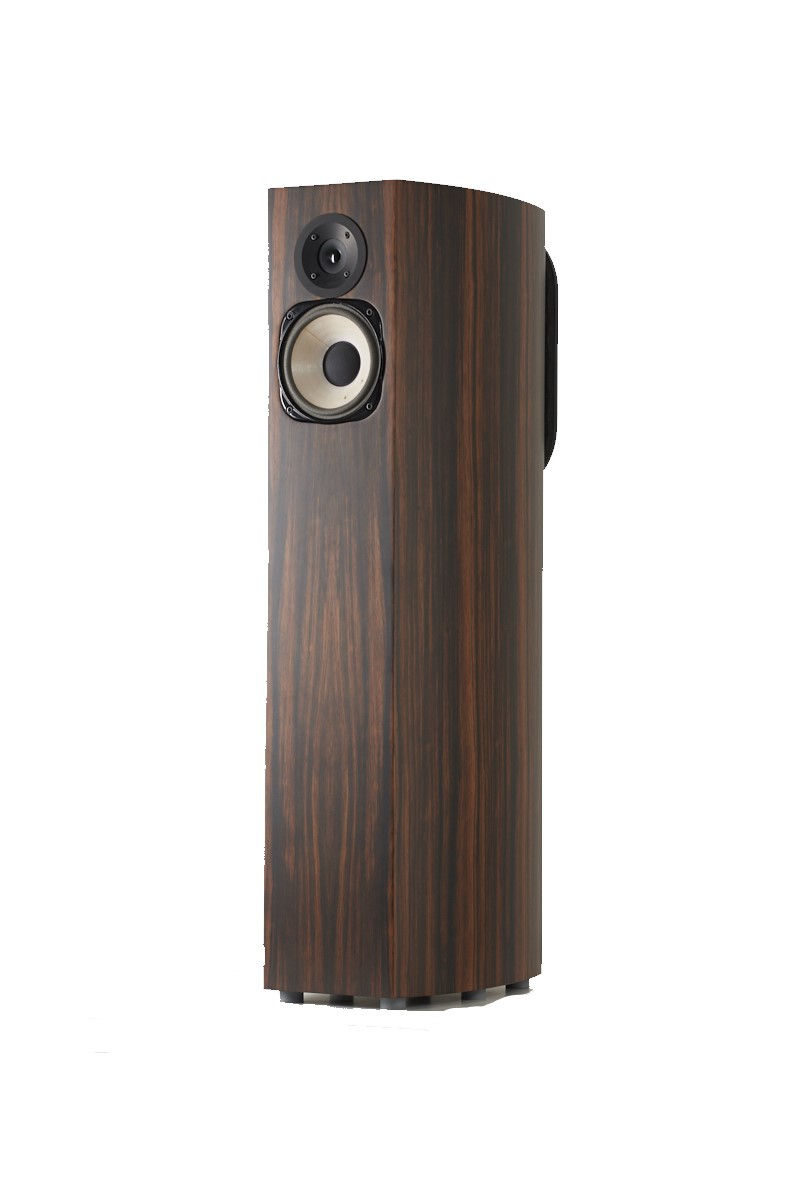

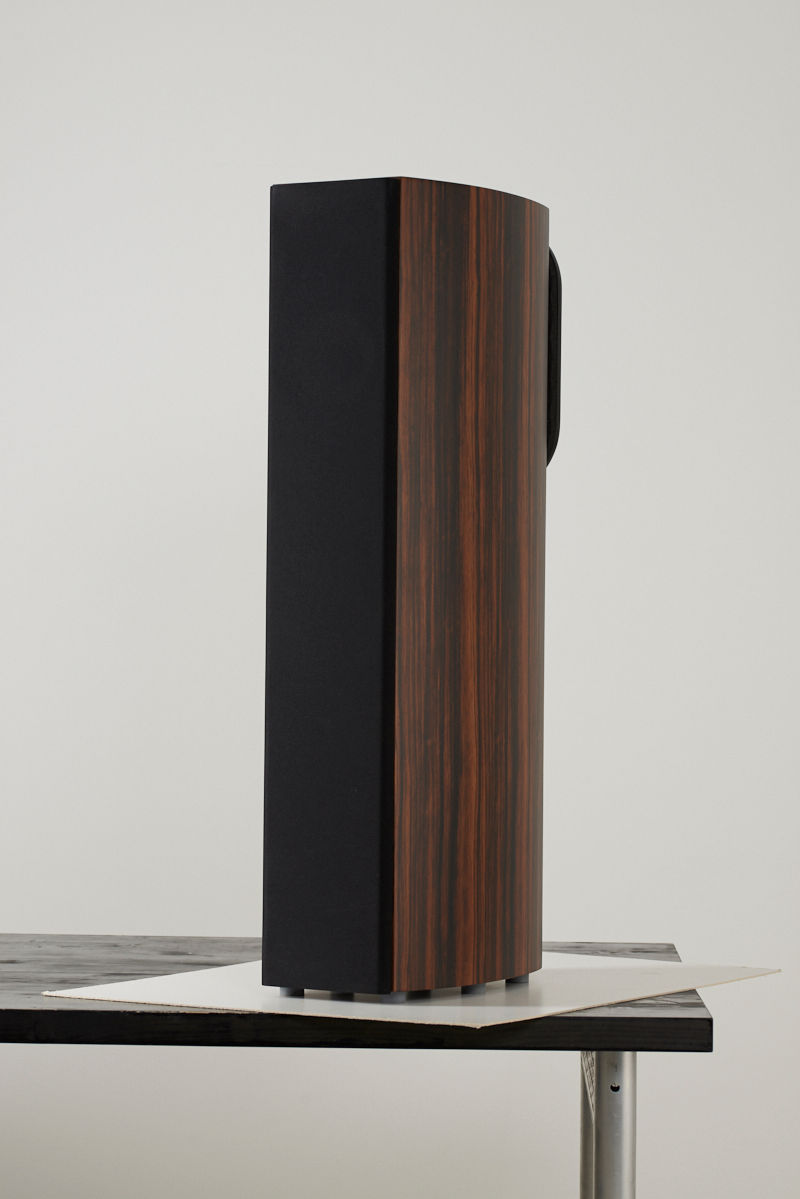

My answer is the Zeus ellipse DX45. It is not as small as could be called a bookshelf kind of loudspeaker. It is however the smallest floor standing loudspeaker we could accept to faithfully follow high fidelity regarding all kinds of music.
The Zeus loudspeaker consists of formidable high quality drive units which are all based on paper membranes. This is the oldest way of making membranes and for me still not surpassed by any other kind of material whether it it be called diamond, beryllium, plastic or any other materials.
We at horning want to hear the the most faithful reproduction of musical instruments.
The paper cones all have as low dynamic mass as possible in order to achieve seamless reproduction from the lowest octaves to the highest.
The goal is to have a high stop and start movement of the membrane and at the same time controlling all unwanted resonances. The better you have a combination of the three drivers with the same acceleration and start stop the more the speaker reacts as one membrane.
One single drive unit covering the whole would be a dream but in reality this is not possible, the drive unit would be to heavy to perform high quality high frequency response. The same membrane would be too light to cover the low octaves, so I made the best compromise with having the best drive, three units with speed as close to each other.
Zeus consists of two 6.5 inch high neodymium magnetic powered woofers with a light mass of 15 grams, 1.7 inch high Tesla midrange driver with a dynamic mass of 5 grams and a spider less cone tweeter with 0.2 grams dynamic mass.
Two 6.5 inch high neodymium magnetic powered woofers
One tweeter driver covering between 200 – 12000 Hz
One mid-range driver
Filter: Acoustical filters at 200 Hz and 12000 Hz, one capacitor for tweeter above 12000 Hz.
Impedance: 4 Ω
Frequency spectrum: 35 – 20000 Hz ±3 dB
Efficiency: 95 dB (1 W )
Amplifier power: 10 to 20 W (above 20 watt keep the sound level under 115 dB)
Connector type: WBT-0703 Cu
Wiring: Horning silk covered 300 x 0.1 Litze 99.99 % copper wire.
Dimensions: Hight: 95cm Width: 26cm Depth: 30cm
Other Finishes not shown above may be available, please contact us to discuss finishes.
